A REALLY QUIC History of HTTP

Bri Hatch Personal Work
Onsight, Inc
bri@ifokr.org		 ExtraHop Networks
bri@extrahop.com

Copyright 2019, Bri Hatch, Creative Commons BY-NC-SA License

HTTP/0.9

1990 at Cern, 1991 elsewhere

$ telnet www.aoeu.com 80
GET /hello.html
<html>
    <head>
        <title>Hello...
    </head>
    <body>
        Hello, World!
    </body>
</html>
$
URL: http://www.aoeu.com/hello.html

Scheme: HTTP
Host: www.aoeu.com
Port: 80
Path: /hello.html

HTTP Method: GET

HTTP/0.9 (cont)

1990 at Cern, 1991 elsewhere

$ telnet www.aoeu.com 80
GET /hello.html
<html>
    <head>
        <title>Hello...
    </head>
    <body>
        Hello, World!
    </body>
</html>
$
HTTP Version: ????
Size of content: ????
Encoding of response: ????
Type of response content: ????
Success or failure: ????

HTTP/1.0

HTTP/1.0 Improvements:

RFC-1945, in 1996.

State of dialup 1996

State of dialup 1996

Ref: codinghorror.com. Note: not actually an interlaced gif

HTTP/1.0 (cont)

$ telnet www.aoeu.com 80
GET /seagl-2019-http.html HTTP/1.0
User-Agent: NCSA Mosaic/1.0 (X11;SunOS 4.1.4 sun4m)

HTTP/1.0 200 OK
Server: NCSA/1.2
Date: Tue, 19 Apr 1994 09:43:00 GMT
Content-Type: text/html
Content-Length: 119
Last-Modified: Wed, 21 Jan 1994 19:51:30 GMT

<html>
    <head>
        <title>Hello World!
...
$

HTTP/1.0 Response Codes

Response codes!
200: OK

201: Created

202: Accepted

204: No Content

301: Moved Permanently

302: Moved Temporarily

304: Not Modified




400: Bad Request

401: Unauthorized

403: Forbidden

404: Not Found

500: Internal Server Error

501: Not Implemented

502: Bad Gateway

503: Service Unavailable

Bring me his Head(ers)!

Browsers and servers can now convey more than just content!


Request HeadersResponse Headers



Accept
Accept-Charset
Accept-Encoding
Accept-Language
Authorization
Content-Language
From
If-Modified-Since
Referer
User-Agent

Allow
Content-Encoding
Content-Language
Content-Length
Content-Type
Expires
Last-Modified
Link
Location
Retry-After
Server
WWW-Authenticate

HTTP/1.0 HEAD Method

HEAD Method

$ telnet www.aoeu.com 80
HEAD /really-big-image.gif HTTP/1.0
User-Agent: NCSA Mosaic/1.0 (X11;SunOS 4.1.4 sun4m)

HTTP/1.0 200 OK
Server: NCSA/1.2
Date: Tue, 19 Apr 1994 09:43:00 GMT
Content-Type: image/gif
Content-Length: 1769082
Last-Modified: Wed, 21 Jan 1994 19:51:30 GMT
$

HTTP/1.0 POST Method

HTTP/1.0 POST Method

$ telnet www.aoeu.com 80
POST /cgi-bin/jj.cgi HTTP/1.0
User-Agent: NCSA Mosaic/1.0 (X11;SunOS 4.1.4 sun4m)
Content-Length: 72
Content-Type: application/x-www-form-urlencoded

pwd=foo&sub=Big+John+Gourmet+Sub....

HTTP/1.0 200 OK
<html>
    <head>
        <TITLE>Order Sent</TITLE>
...

SSL/TLS

SSL - Secure Sockets Layer TLS - Transport Layer Security

Protocol developed at Netscape
SSLv2, Nov 1994
SSLv3, Nov 1995, RFC-6101 (eventually)
SSLeay 1995
OpenSSL fork, 1998
TLS 1.0 - 1999; TLS 1.1 - 2006; TLS 1.2 - 2008; TLS 1.3 - 2018

$ printf "GET /\n\n"  |  \
    openssl s_client -connect www.aoeu.com:443

HTTP Stack

HTTP Stack
L?+1HTTP (Headers/Content/etc)
L?TLS/SSL (hopefully!)
L4TCP
L3IP
L2Ethernet
L1Physical Layer

HTTP/1.1

Standarized in 1997, RFC-2068

Improvements

  • Improved cache control
  • Range requests
  • HTTP Proxy Support
  • Content Negotiation
  • Content Chunking
  • Connection Reuse
  • Pipelining
  • Compression
  • Host header

Methods in HTTP/1.1

Methods in HTTP/1.1




    GET
    HEAD
    POST
    DELETE
    PUT
    PATCH

    LINK
    UNLINK
    CONNECT
    OPTIONS
    TRACE
REST - Representational State Transfer (2000) supplants SOAP

XMLHttpRequest enables AJAX (OWA 1999, Gmail 2004)

Connection Reuse (HTTP/1.1)

Connection Reuse (HTTP/1.1)
GET /first/item HTTP/1.1
REQUEST HEADERS

RESPONSE HEADERS
RESPONSE CONTENT
GET /second/item HTTP/1.1
REQUEST HEADERS

RESPONSE HEADERS
RESPONSE CONTENT
GET /third/item HTTP/1.1
...

  • Avoided TCP session establishment overhead
  • Browsers still had hard-coded limit of concurrent connections

Pipelining (HTTP/1.1)

Pipelining (HTTP/1.1)
GET /first/item HTTP/1.1
FIRST REQUEST HEADERS
GET /second/item HTTP/1.1
SECOND REQUEST HEADERS

FIRST RESPONSE HEADERS
FIRST RESPONSE CONTENT
SECOND RESPONSE HEADERS
SECOND RESPONSE CONTENT
GET /third/item HTTP/1.1
THIRD REQUEST HEADERS
...

But may not be supported by server - would need to be retried.
Only safe on idempotent requests.

HTTP/2

HTTP/2

  • Introduced 2015, RFC-7540, based on Google's SPDY (2009) experimental protocol
  • Stream (response) multiplexing, non-ordered, via binary framing layer
  • Stream prioritization
  • Gratuitous responses (Promises)
  • Header compression
  • Improves "head of line blocking" problem

HTTP/2 Multiplexing

HTTP/2 Multiplexing

Client <- Stream 11
response
data		 Stream 3
response
headers		 Stream 5
response
data		 Stream 2
response
headers		 Stream 3
response
data		 Stream 3
response
data		 Server
Stream 7
request
headers		 ----->

HTTP/2 Compatibility

HTTP/2 Compatibility

Binary framing doesn't play well with <= HTTP/1.1 servers.

Solution: upgrade from HTTP/1.1, or use TLS

    GET /index.html HTTP/1.1
    Connection: Upgrade, HTTP2-Settings
    Upgrade: h2c
    NORMAL_HEADERS_HERE
    HTTP2-Settings: <base64 headers settings blob>

    HTTP/1.1 101 Switching Protocols
    Connection: Upgrade
    Upgrade: h2c
    ...

HTTP/2 Results

HTTP/2 Results

  • Head of line problem (mostly) eliminated
  • Browsers use just one TCP socket
  • Best we can do?

HTTP/3

HTTP/3

  • Based on gQUIC (Google 2012)
  • Agreed to become HTTP/3 Nov 2018, but still in RFC draft
  • Latest update: Nov 4, 2019
  • Available in Chrome canary, Firefox nightly, libcurl, others
  • Solves head of line problem

Solving HOL? (HTTP/3)

So how did they solve the HOL problem?

Solving HOL? (HTTP/3)

So how did they solve the HOL problem?

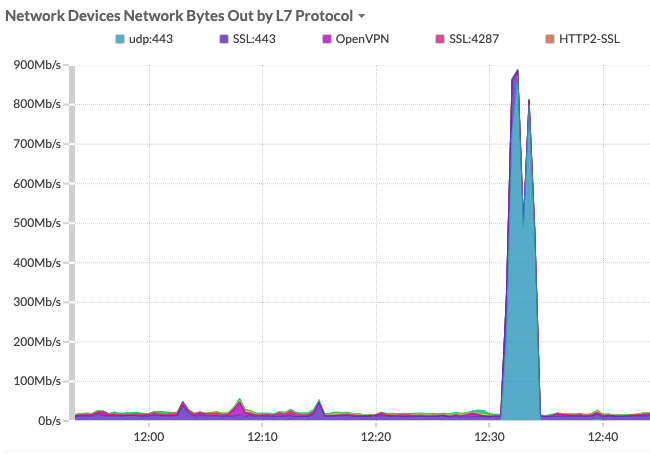

HTTP over UDP

HTTP over UDP

  • Not stream-oriented - no guaranteed packet order
  • Must re-implement retransmissions, congestion control, and other TCP features
  • Existing protocols like SCTP, TCP Fast Open insufficient

QUIC: generic secure UDP transport.
HTTP/3: is HTTP over QUIC.

HTTP/3 Features

HTTP/3 Features
  • TLS required
  • All advantages of HTTP/2 multiplexing, prioritization, etc
  • Fast handshake (0-RTT, 1-RTT)
  • IP roaming via 62-bit stream ID!

HTTP/3 Standard

HTTP/3 Standard

Latest draft: 2019-11-04
Draft expires: 2020-05-07

https://tools.ietf.org/html/draft-ietf-quic-http-24
